The XCES platform is an instance of the Free Evaluation System Framework (Freva), designed by the Freva team and adapted for the scientists of the ClimXtreme project by Module D. Below you will find relevant information on how to get started with the system.

The system can used either through the shell, website, or its python module (e.g. for Jupyter). We will give an overview of the capabilities of XCES on all platforms and also the necessary steps to set a working environment in the shell that will allow us to share data with the rest of the ClimXtreme community or test our plugins in development stage.

To access XCES you will need a DKRZ account. If you still do not have one, you need to create one through DKRZ's LUV.

In order to use the system you will need to be part of group bm1159, for that please go to https://luv.dkrz.de (click join existing project) and join bm1159. Please briefly mention which module and project you are in.

Note: group bm1159 is used for anything related with XCES/Freva while bb1152 is for all Module A,B,C activities non related with XCES.

Note2: in the transition to Levante the former group bmx825 with the old Miklipers dissapeared along with the MiKlip machine so only bm1159 is valid from now on. All data, and outputs have been conveniently relocated.

At DKRZ you have a home/, a scratch/ and a project work/ directory ( general info):

• home/: depending on your username (<username> == {a,b,g,k,m,u} + 6 digits) it will be different (/home/{a,b,g,k,m,u,zmaw}/{a,b,g,k,m,u,zmaw}######), so for example for user k204229 it will be /home/k/k204229.
• scratch/: similar to home/ it also depends on the username (/scratch/{a,b,g,k,m,u,zmaw}/{a,b,g,k,m,u,zmaw}######), for example /scratch/k/k204229.
• work/: the workspaces of each project. For all Freva-ClimXtreme users is /work/bm1159/XCES/xces-work/<username>/.



XCES will create certain working directories under /work/bm1159/XCES/xces-work/ for you if you run a plugin job via web, although it will not create the symlinks nor all the folders described below. If you never intend to directly work in levante, this might be enough.

However, for a better usage of the storage we recommend to log in via shell and load the xces/freva module at levante:

$ ssh <username>@levante.dkrz.de
$ module load clint xces

Loading the module will automatically create all the folder structure underneath for you, e.g (for $USER=k204229) with some symlinks that will make the structure cleaner and lighter:

$ ls -lrth /work/bm1159/XCES/xces-work/$USER
total 8.0K
drwxr-sr-x.  7 k204229 bm1159 4.0K Jul 14 10:27 evaluation_system
drwxr-sr-x. 11 k204229 bm1159 4.0K Jul 14 10:30 MYWORK

• Use evaluation_system for anything directly related to XCES, i.e.: data to be indexed into XCES, job outputs (datafiles, plots, configurations), and/or folders where your plugin(s) are being developed/tested. Here we will have the following folders:

  $ cd /work/bm1159/XCES/xces-work/k204229/evaluation_system
  $ lh
  total 20K
  drwxr-sr-x.  6 k204229 bm1159 4.0K Jun 22 19:01 CMOR4LINK/ <--- place the data you want to index in XCES here
  drwxr-sr-x.  3 k204229 bm1159 4.0K Nov 20  2020 config/    <--- the configuration files of job runs will be stored here
  drwxr-sr-x. 27 k204229 bm1159 4.0K Jul 13 15:48 output/    <--- the output folders of the job runs will be stored here
  drwxr-sr-x.  6 k204229 bm1159 4.0K Dec  8  2021 plots/     <--- the plots of the job runs can be stored hered
  drwxr-sr-x.  5 k204229 bm1159 4.0K May 18 09:00 plugins/   <--- folder where to place your plugin (tool) repositories for dev/testing
  lrwxrwxrwx.  1 k204229 bm1159   29 Jan 25 17:15 cache -> /scratch/k/k204229/xces-cache/ <--- place where the temporary files are placed


  Your index data into Freva, will be placed under /work/bm1159/XCES/xces-work/data/crawl_my_data/user-$USER that should be a symbolic link to /work/bm1159/XCES/xces-work/$USER/evaluation_system/CMOR4LINK/.

  As you can see, the cache folder (folder for temporary calculations for your plugin runs) is a symlink to your scratch directory. For that:

  $ mkdir -p /scratch/k/$USER/xces-cache
  $ ln -s /scratch/k/$USER/xces-cache /work/bm1159/XCES/xces-work/$USER/evaluation_system/cache

  Note: the scratch folder provides temporary storage and processing of large data. To prevent the cache outputs to take a significant chunk of project space (bear in mind that in the Miklip machine the amount of temporary files far exceeded 35TB!), old data is automatically deleted every 14 days given that a file has not been accessed (i.e. created or modified) during that period.

• Use MYWORK for the rest of project work, i.e.: other data and/or analyses.

If you want to plug your own plugins and, in general, make sure that XCES sees all the folders you want without a problem, please, make sure to use bm1159 linux group for your workspace.

$ cd /work/bm1159/XCES/xces-work/
$ chgrp -R bm1159 <username>

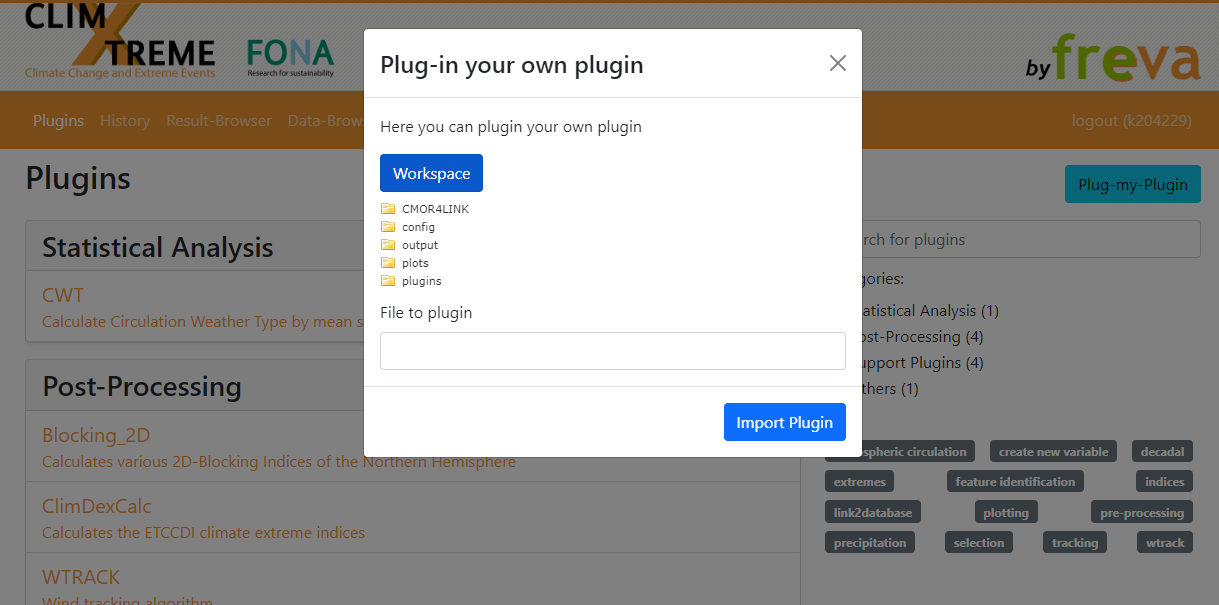

If that is the case, in the website you should be able to see the following when trying to Plug-my-plugin button at the Plugins section:

To use XCES system you may use ssh (You may copy the following line as is into your shell):

$ ssh -X <username>@levante.dkrz.de

The -X will allow you to connect to the remote X server (e.g. to display images).

Start setting up the environment by loading the proper module (A list of common module commands can be found here):

$ module load clint xces

This activates the system for your current session. You might notice some other modules have been loaded.

Note: unlike with the old version, the new version of Freva works with bash, csh, zsh and fish.

DEVELOPERS note: Freva loads other required environment variables, for example pointing PYTHONPATH to /home/b/b380001/freva/bin/python to 3.10.5 and making conda and mamba available. These package and environment manage systems can be very handy when, for example, trying to install specific libraries or compilers for tools you are developing (not a must, but recommended).

Freva is an all-in-one framework with the main features: $ freva --help

$ freva --help
usage: freva [-h] [-V] {esgf,user-data,plugin,history,databrowser} ...

Free EVAluation system framework (freva)

positional arguments:
  {esgf,user-data,plugin,history,databrowser}
                        Available sub-commands:
    esgf                Search/Download ESGF the data catalogue.
    user-data           Update users project data
    plugin              Apply data analysis plugin.
    history             Read the plugin application history.
    databrowser         Find data in the system.

options:
  -h, --help            show this help message and exit
  -V, --version         show program's version number and exit

To get help for the individual sub-commands use: freva <sub-command> --help

This is the main tool for the evaluation system:

• Usage: $ freva COMMAND [OPTIONS]
• To get help for the individual commands: $ freva COMMAND --help

All commands have a -h or --help flag to display the commands help.

Basic commands for freva:

Let's assume that we want to compute a Principal Component Analysis over a series of ensemble members for a certain year (1960), for surface temperature (tas). We can use the PCA plugin and iterate it over all ensemble members of the experiment started in 1960 and compute the PCA of them for that variable. In bash this would be:

#!/bin/bash
for file in $(freva databrowser project=baseline1 variable=tas time_frequency=mon experiment=*1960); do
  freva plugin pca input=$file outputdir=/tmp variable=tas pcafile=pca_$(basename $file)
done

In addition to the existing MIKLIP data, module D will integrate further data sets. So far, hourly and daily data of the regional reanalysis COSMO-REA6 have been added, as well as daily data of the gridded data set HYRAS and selected station data of the DWD station network. Further information about the added data, where to find them, what parameter are integrated and what will be integrated next, can be found here.

We may log into the system via https://www.xces.dkrz.de/. As with the shell version, we will also need to use our DKRZ account login.

To be able to use freva within jupyter you must logon to the DKRZ Levante computing resources and load the xces module. After that you will have to install your jupyter kernel. For example

% ssh <username>@levante.dkrz.de
$ module load clint xces
$ jupyter-kernel-install python --name xces --display-name XCES

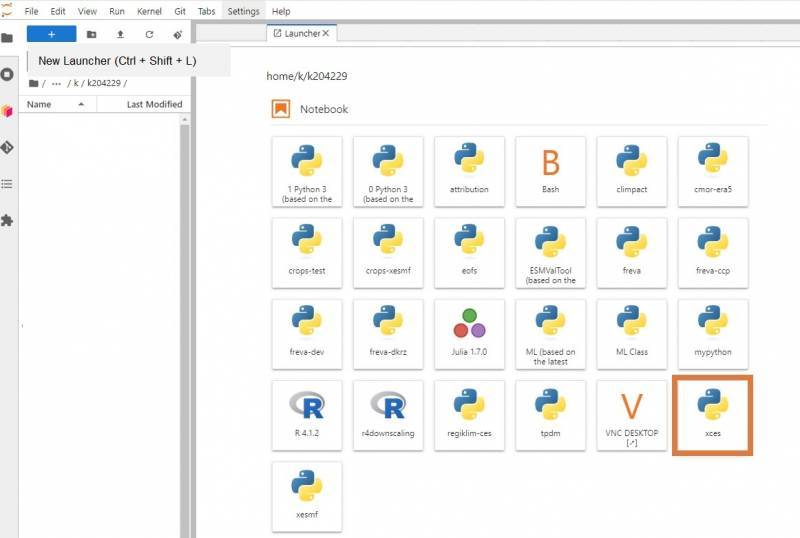

Then, in your own jupyterhub session when launching a new e.g. Notebook you will see that kernel ready to be used:

Incidentaly, you can also install a jupyter kernel based on freva's R environment like this:

% ssh <username>@levante.dkrz.de
$ module load clint xces
$ jupyter-kernel-install r --name xces-r --display-name XCES-R

BUT be aware that there is currently NO API to call freva functionalities within R, so it will only work as an additional R kernel, nothing more.

xces/Freva ships with its own R and Python environment, with some basic set of libraries included already. These environments can be used out-of-the-box. To check the R/Python version please:

$ module load clint xces
$ which R;R --version
/home/b/b380001/freva/envs/gnu-r/bin/R
R version 4.2.2 (2022-10-31) -- "Innocent and Trusting"
...

[k204229@levante2 ~]
$ which python;python --version
/home/b/b380001/freva/bin/python
Python 3.10.5

As it could happen that these environments do not have the libraries you require, there is an option to, without the need of creating a completely new environment, prepend your desired libraries to the already pre-existing one.

First load xces and its own python environment:

$ module load clint xces

You can check whether your needed package is already pre-installed with:

$ python -c "import your_package"

If you see an error such as ImportError: No module named <your_package> you may want to install it locally. If it does not return anything is that the package is already there.

To install the Python package, type:

$ pip install your_package --user

The package will then be downloaded, built, including dependencies, and installed under $HOME/.local/lib/python3.X/site-packages.

NOTE: conda/mamba does not allow to do something similar to that, so if the package you want to append can only be installed via conda then you will need to create your own environment.

Say you want to install the e.g. MBC Multivariate Bias Correction package from CRAN. You will simply need to follow these steps:

$ module load clint xces
$ R

> install.packages("MBC")
Warning in install.packages("MBC") :
  'lib = "/home/b/b380001/freva/envs/gnu-r/lib/R/library"' is not writable
Would you like to use a personal library instead? (yes/No/cancel) yes <----
Would you like to create a personal library
‘/home/k/$USER/R/x86_64-conda-linux-gnu-library/4.2’
to install packages into? (yes/No/cancel) yes <---
--- Please select a CRAN mirror for use in this session ---
...

You successfully installed the package locally. You can see that your packages will be installed in your own ~/R/x86_64-conda-linux-gnu-library/4.2 (or whatever R version is currently installed)

You can get some more information on e.g. how to build packages locally (I adapted some of the above mentioned text from there) here.

If, on the other hand you want to use freva as a python library alongside others (e.g. in a conda environment) then you can:

1. install the package via pypi pip install freva or via conda/mamba mamba install -c conda-forge freva
2. add the environment config of XCES in your script, e.g.:

import os,sys
os.environ["EVALUATION_SYSTEM_CONFIG_FILE"] = "/work/bm1159/XCES/freva/evaluation_system.conf" # this is for the environment
os.environ["EVALUATION_SYSTEM_CONFIG_DIR"] = "/work/bm1159/XCES/freva" # this is for the environment
import freva

Overall usage information usage of Freva can be found here, including some Frequently Asked Questions.

The HELP page of XCES has a lot of important links, as well, including a little tour around the webpage!

If you have questions, please contact your Module coordinator (research related), or Deborah Niemann at Deborah.Niermann@dwd.de (data related), or Etor Lucio at lucio-eceiza@dkrz.de (software related).
